Do I Need Surge Protection for My HVAC System

What a power surge is and why it matters

A power surge is a sudden spike in voltage that lasts milliseconds but can punch far above its weight. Surges come from lightning (often indirect), utility switching, grid faults, downed lines, generator or solar PV transitions, and even large appliances cycling on and off. Modern HVAC equipment is packed with sensitive electronics—control boards, variable-speed drives, ECM motors, and smart thermostats—that can be damaged by voltage spikes long before a breaker trips.

Why HVAC systems are especially vulnerable

• Inverter-driven compressors and variable-speed blowers rely on electronic drives that are sensitive to overvoltage.
• Control boards and sensors can fail from small, repeated surges that slowly degrade components.
• Thermostats, Wi‑Fi modules, and communication wiring create additional surge entry paths.
• Mini-splits and heat pumps often have outdoor electronics exposed to weather and grid disturbances.

Because these parts are integrated, a single damaged board can take your entire air conditioner, heat pump, or furnace offline—right when cooling or heating is critical.

Types of surge protection for HVAC

1) Service-level protection (whole-home)

A Type 1 or Type 2 whole-home surge protective device (SPD) at the main service panel (or meter base where permitted) guards the entire house. It shunts large surges to ground before they reach branch circuits, lowering the surge energy your HVAC ever sees.

2) Dedicated HVAC surge protector

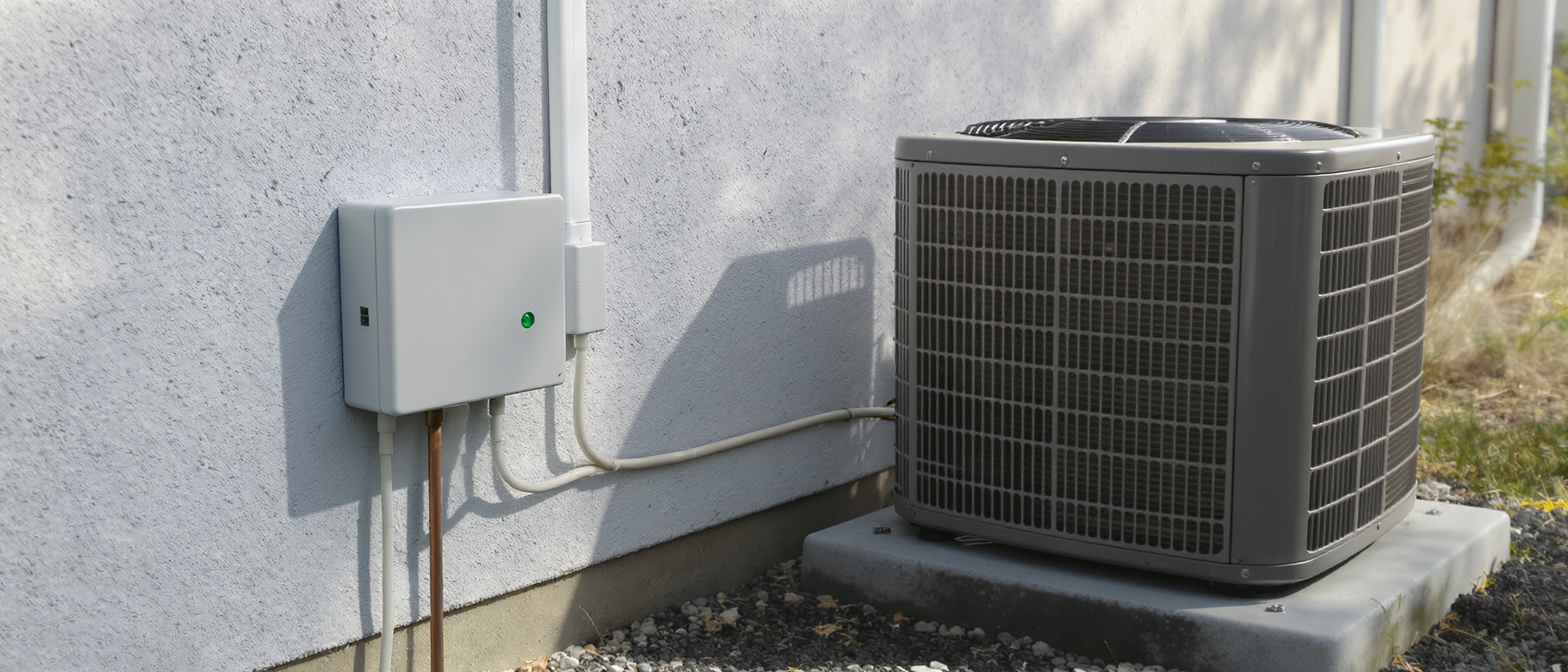

A unit-specific SPD installed at the outdoor disconnect or air handler adds a second layer right at the equipment. This is especially useful for inverter heat pumps, condensers, and air handlers with ECM motors. Look for UL 1449 4th Edition listing, protection modes (L-N, L-G, N-G), clear status indicators, and replaceable modules.

3) Low-voltage and data-line protection

Low-voltage (24V) control circuits and communication links between indoor and outdoor units can carry surges. Properly rated low-voltage SPDs and good grounding/bonding practices help protect thermostats and control boards.

4) Power strips are not enough

Plug-in strips are fine for TVs—but they do nothing for hardwired HVAC equipment. HVAC requires panel-mounted and equipment-level protection sized for motor loads and outdoor duty.

Do I really need it? Situations where surge protection is essential

• Areas with frequent outages, grid switching, or wildfire-related Public Safety Power Shutoffs.
• Homes with rooftop solar, battery systems, or standby generators (source transitions can create spikes).
• Properties with long service runs, older wiring, or known grounding issues.
• Buildings using advanced inverter mini-splits, heat pumps, and variable-speed systems.
• Commercial sites with large motors, elevators, or welders on the same service.

Even if lightning is rare, cumulative small surges shorten the life of boards, contactors, and drives. Surge protection is like a seatbelt for your HVAC—most of the time you won’t notice it, but when you need it, it can save you from a major repair.

Code, warranty, and insurance notes

Many jurisdictions now require a surge protective device at dwelling service equipment in new or substantially upgraded electrical systems. Manufacturers frequently exclude lightning and surge damage from standard warranties. Insurers and risk managers increasingly ask for documented, properly installed SPDs; some claims are denied when there is no evidence of compliant installation by a qualified professional. Always check local code and policy language and document the model, UL listing, and installation location of each SPD.

Choosing the right SPD for HVAC

• kA rating: Higher surge current ratings (e.g., 50–100 kA per phase for service devices; 10–50 kA for equipment-level) increase durability.
• Clamping voltage (VPR): Lower is better, within compatibility for your equipment.
• UL 1449 4th Edition: Confirms testing to current standards.
• Modes of protection: L-N, L-G, and N-G for comprehensive coverage.
• Indicator lights/alarms: Let you know when a module has sacrificed itself and needs replacement.
• Enclosure: NEMA 3R or better for outdoor units; proper weatherproof fittings.
• Short lead lengths and solid bonding: Critical for performance.

Heat pumps, mini-splits, and variable-speed systems

Inverter heat pumps and mini-splits are highly efficient—but their power electronics need clean power. A whole-home SPD plus a properly sized HVAC surge protector at the disconnect offers robust protection. Our engineering team has hands-on factory training with Fujitsu (Japan), Mitsubishi Elektrik (Thailand), Midea (China), Gree (China), and Hier (China) systems, so we size and place SPDs to suit real-world operating characteristics of these platforms.

Maintenance and lifecycle

• Visual checks: Confirm status lights after storms or outages.
• Replacement: SPDs are sacrificial; replace units that indicate end-of-life.
• Recordkeeping: Keep model numbers, install dates, and photos for warranty and insurance files.
• Annual inspection: Verify torque, lead length, bonding, and weather seals during seasonal HVAC service.

Why DIY can be risky

Miswiring, long leads, poor grounding, or installing the wrong SPD type can reduce protection or create hazards. Panel work carries shock and arc-flash risk. Improper installations can void equipment warranties and complicate insurance claims. Many insurers and AHJs expect a qualified specialist to perform and document surge protection work, especially on hardwired HVAC equipment.

Who we are and where we work

#1 AC Guys is a fourth-generation family engineering business with 80+ years of engineering experience. We specialize in residential and commercial HVAC, including large and complex projects, with a mission of healthy air at home for a healthy life. Our service area covers Los Angeles County and nearby regions, including Orange County, Ventura County, and Western Riverside County. Typical cities include Los Angeles, Long Beach, Pasadena, Glendale, Burbank, Santa Monica, West Hollywood, Anaheim, Irvine, Santa Ana, Huntington Beach, Costa Mesa, Fullerton, Newport Beach, Ventura, Oxnard, Thousand Oaks, Camarillo, Simi Valley, Riverside (western areas), Corona, Eastvale, Norco, and Jurupa Valley.

Bottom line

Yes—HVAC surge protection is a smart, often necessary layer of defense. A whole-home SPD plus a dedicated HVAC protector, installed and documented by a qualified professional, can help safeguard your equipment, reduce downtime, and support warranty and insurance requirements.
